| Ονομασία μάρκας: | Beishun |
| Αριθμός μοντέλου: | XPG-900 |
| Τροποποιημένο: | 1set |
| τιμή: | Διαπραγματεύσιμα |
| Πληροφορίες συσκευασίας: | ξύλινο κουτί/δοχείο |
| Όροι πληρωμής: | T/T,L/C |
| Parameter | Specification | Remarks |
|---|---|---|
| Model | RC-CM300 | Customizable for sheet width & speed |
| Cooling Method | Water-Cooled Rollers / Air Cooling / Combined | Choice based on rubber type & thickness |
| Max. Sheet Width | 300~1500 mm | Adjustable guide rollers |
| Sheet Thickness Range | 1~20 mm | Uniform cooling for consistent quality |
| Cooling Temperature | 10°C~50°C (Adjustable) | Thermostatic control (±2°C) |
| Cooling Roller Diameter | Ø300~600 mm (Stainless Steel/Chrome Plated) | Anti-stick surface treatment |
| Roller Speed | 0.5~10 m/min (Variable Frequency Drive) | Sync with upstream calender/extruder |
| Water Flow Rate | 10~50 L/min (Circulating Chilled Water System) | Energy-efficient heat exchange |
| Air Cooling | High-volume fans (Optional) | For secondary cooling or sensitive rubbers |
| Power Supply | 380V, 50Hz, 3-phase | CE/ISO certified |
| Machine Dimensions | 3000×1500×2000 mm (Standard) | Compact layout for mixing lines |
| Production Capacity | 500~2000 kg/h | Depends on sheet thickness & material |
✔ Precision Temperature Control – Prevents rubber sheet warping or internal stress.
✔ Anti-Stick Rollers – Chrome-plated or Teflon-coated for easy sheet release.
✔ Modular Design – Integrates with calenders, extruders, or batch-off systems.
✔ Energy Recovery – Optional heat reclaim for water heating in other processes.
Hot Sheet Infeed – From calender or extruder (60°C~120°C).
Primary Cooling – Water-cooled rollers rapidly reduce temperature.

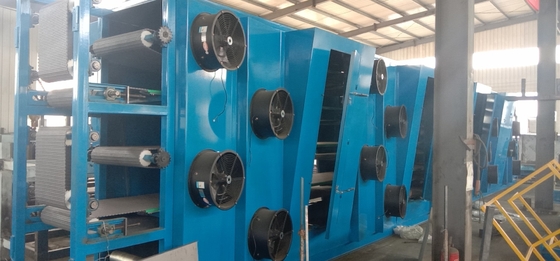

Secondary Cooling – Air knives/fans ensure complete stabilization.
Sheet Winding/Cutting – Ready for stacking or vulcanization.
Natural Rubber (NR), SBR, EPDM, NBR – Prevents scorching during cooling.
Filled Compounds – Handles carbon black/silica-loaded sheets.
Recycled Rubber – Effective cooling for uneven thicknesses.
Laser Thickness Gauge – Real-time monitoring and automatic adjustment.
Automatic Stacking System – Robot-assisted sheet collection.
Dust Removal Unit – Air showers for clean sheet surfaces.
Temperature Mapping – Infrared sensors ensure uniform cooling.
Surface Inspection – Detects bubbles or imperfections post-cooling.
Need a customized solution? Provide:
① Sheet width/thickness requirements,
② Upstream equipment (e.g., calender model),
③ Target production rate (kg/h).
Let me know if you require cooling efficiency data or noise level specifications!
|
|
